11.2.3. Si HD

11.2.3.1. Camera

../../../_images/video-si-hd-camera-labeled.svg

Si HD camera mounted on ECM

11.2.3.2. CCUs

The CCUs for the Si endoscope are integrated in a single 1U rack mounted enclosure. There are two SDI outputs, Left and Right.

../../../_images/video-si-hd-ccu-back.jpg

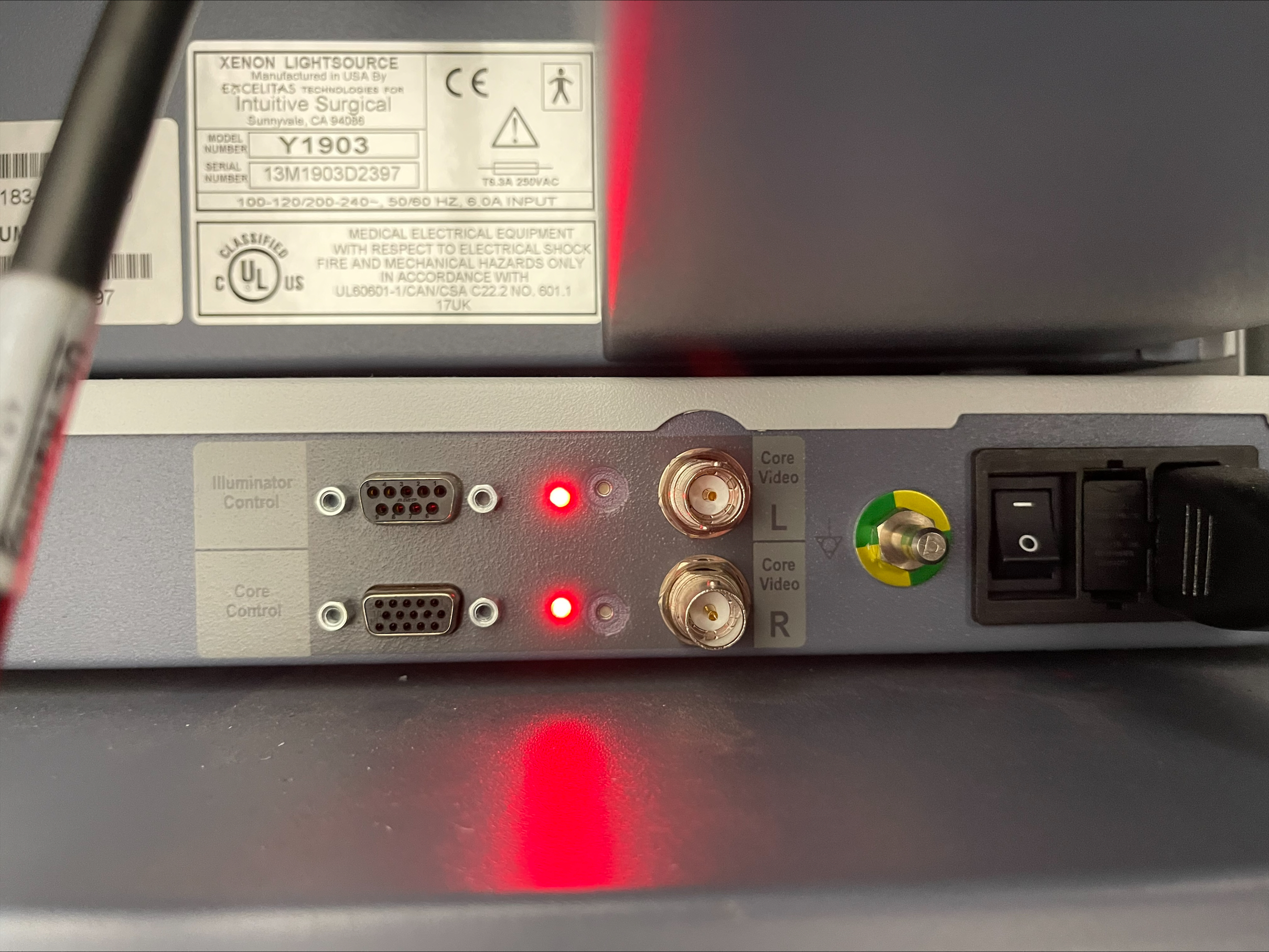

Si HD CCU back

../../../_images/video-si-hd-ccu-front-light-source.jpeg

Si HD CCU (bottom) and light source (top)
